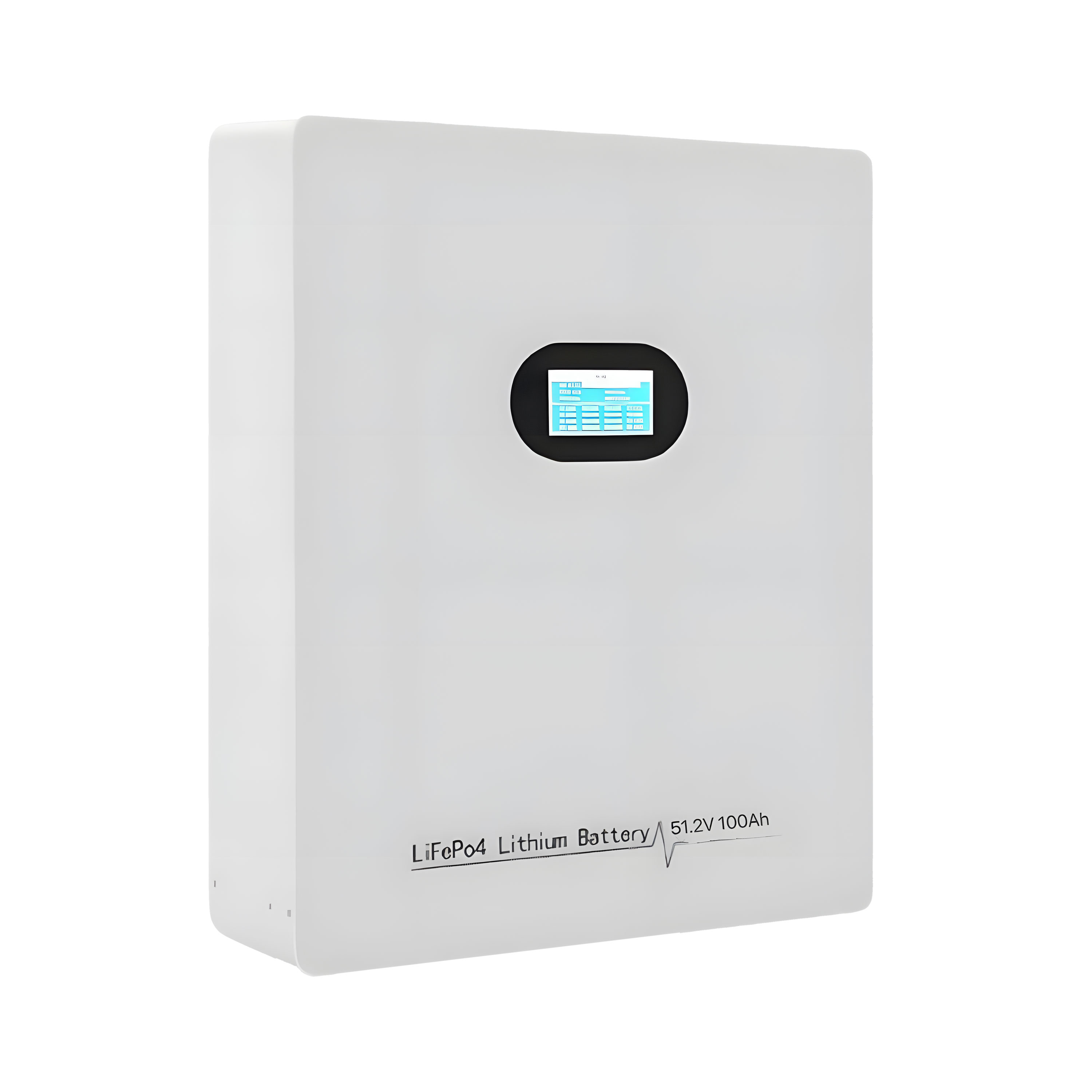

Solar batteries are one of the most important elements in your solar system. It stores the extra energy for use in the absence of the sun.
Parameters
| Specifications | 51.2V 100Ah | 51.2V 200Ah | 48V 200Ah |
| Connect Way | 16S1P | 16S1P/16S2P | 15S1P/15S2P |
| Capcity | 5.16KWH | 10.24KWH | 9.6KWH |
| Max. Discharging Current | 50A | 100A | 100A |
| Working Voltage Range | 44.8V-58.4V | 44.8V-58.4V | 42V-54.75V |
| Rated Voltage | 51.2V | 51.2V | 48V |
| Max. Charging Current | 75A | 100A | 100A |
| Dimension | 755*414*206mm | 815*588*204mm | 815*588*204mm |
| Weight | 52.15KGS | 89.6KGS | 82KGS |
| Recommend Discharging Deep Cycle | Times of Deep Cycle 3000 @DOD80%/25℃/0.5C |
| Working Temperature | -10℃~50℃ |
| Working Humidity | 65+/-20%RH |
| Working Altitude | ≤2500m |
| Cooling Mode | Natural Cooling |
| Installation Way | Hang Wall/ Standing |
| Protection Grade | IP20 |
Maximum Parallel | 15PCS |
| Warranty | 4-6 Years |
| Telecommute Way | RS485/CAN |
| Certifications | CE EMCROHS IEC62619 UN38.3 MSDS |
